Creating LedgerJournalTrans using X++ is quite a common task, but sometimes I still see some mistakes(mostly related to fields initialization from account/offset account and voucher assignment). In this post, I’ll try to describe possible options how to create ledger journals in D365FO.
Test scenario

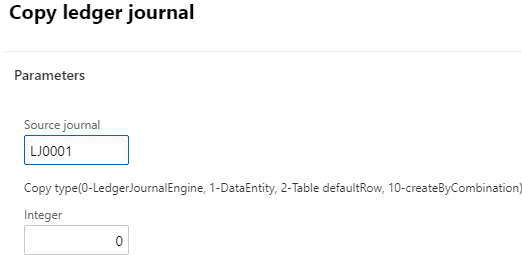

To test different methods, I wrote a Runnable class DEVTutorialCreateLedgerJournal that creates a new journal based on the data from the existing source journal using different methods. The dialog looks like this
Let’s discuss possible copy options(Copy type parameter):
LedgerJournalEngine class
This method is using LedgerJournalEngine class - the same class that is used when the user creates a journal manually on the Journal lines form. This increases the chances that the resulting line will be the same as a manually created line.
whileselect ledgerJournalTransOrig order by RecId where ledgerJournalTransOrig.JournalNum == _ledgerJournalTableOrig.JournalNum { numLines++; if (!ledgerJournalTable.RecId) { //Often journal name from parameters is specified here DEV::validateCursorField(ledgerJournalName, fieldNum(LedgerJournalName, JournalName));
ledgerJournalTable.clear(); ledgerJournalTable.initValue(); ledgerJournalTable.JournalName = ledgerJournalName.JournalName; ledgerJournalTable.initFromLedgerJournalName(); ledgerJournalTable.JournalNum = JournalTableData::newTable(ledgerJournalTable).nextJournalId(); ledgerJournalTable.Name = strFmt("Copy of %1, Date %2", _ledgerJournalTableOrig.JournalNum, DEV::systemdateget()); ledgerJournalTable.insert();
When you modify Account/Offset account fields in this example you need to call two methods(on ledgerJournalTrans and ledgerJournalEngine). This ensures that the line will be properly initialized from the Account/Offset account field.
Voucher assignment here is processing in ledgerJournalEngine.write().
Also, an interesting flag here is LedgerJournalTrans.SkipBlockedForManualEntryCheck. It is useful when you don’t want to allow users to create manually lines with the same accounts as in your procedure.
LedgerJournalTrans defaultRow() method
This is a new approach in D365FO and it uses a new defaultRow() table method. Data entities also call this method during the import process. Its idea is that we don’t control the sequence of different modifiedField method calls, we just populate the fields that we know, all other logic happens in the defaultRow() method.
You can find an example of this approach in the MCRLedgerJournal class (and the usage is here)
Data entity
We can also use a data entity for journal creation. Technically it produces the same result as the previous method because a data entity at the end will call a table defaultRow() method.
whileselect ledgerJournalTransOrig order by RecId where ledgerJournalTransOrig.JournalNum == _ledgerJournalTableOrig.JournalNum { numLines++; select dimensionCombinationEntity where dimensionCombinationEntity.RecId == ledgerJournalTransOrig.LedgerDimension; select dimensionCombinationEntityOffset where dimensionCombinationEntityOffset.RecId == ledgerJournalTransOrig.OffsetLedgerDimension;
ledgerJournalEntity.initValue(); ledgerJournalEntity.JournalBatchNumber = journalNum; ledgerJournalEntity.Description = strFmt("Copy of %1, Date %2", _ledgerJournalTableOrig.JournalNum, DEV::systemdateget()); ledgerJournalEntity.JournalName = _ledgerJournalTableOrig.JournalName; ledgerJournalEntity.LineNumber++;
//if you have string and want to convert to ID - DimensionDefaultResolver::newResolver(_dimensionDisplayValue).resolve(); //AX > General ledge > Chart of accounts > Dimensions > Financial dimension configuration for integrating applications ledgerJournalEntity.AccountType = ledgerJournalTransOrig.AccountType; ledgerJournalEntity.AccountDisplayValue = dimensionCombinationEntity.DisplayValue;
As you see this method requires less code: we don’t even need to write code for the journal header creation, it is all handled by the data entity insert() method. Dimensions can be also specified as strings. However there are some limitations: sometimes data entity doesn’t contain all the table fields and it doesn’t support all account types.
Performance testing
Let’s test the performance. First I created a test journal with the 1000 lines(createByCombination method) and then copied it using these 3 different methods. I got the following results:
Method
Time to create 1000 lines(sec)
Using ledgerJournalEngine
30.54
Using DataEntity
33.09
Using Table defaultRow method
15.18
There are some differences between the copy speed in my example, but it is caused by a different logic for the dimension creation, so the result is that all methods are almost equal and quite fast. In a real-life scenario, you can expect an insert speed 10-30 lines per second.
Choosing the right method and things to avoid
In general, you have 2 options - to create a journal similar to the manual user entry or create it similar to the import procedure(for the second scenario choice between entity and table mostly depends on what input data you have and whether the entity supports all the required fields). So the choice between these two should be made by answering the question: if the user wants to create the same journal manually, does he use manual entry or data import? Use createJournalUsingLedgerJournalEngine as default, as it is more flexible.
Probably in D365FO it is better to avoid creation using JournalTransData classes or when you simply populate ledgerJournalTrans fields and call insert(). This initially can work, but later users may complain - e.g. “Why when I create a journal manually and specify a vendor account the Due date field is calculated, but your procedure doesn’t fill it“.
Summary
You can download this class using the following link createJournalUsingLedgerJournalEngine. The idea is that you can use this code as a template when you have a task to create(or post) a ledger journal using X++. Comments are welcome.
