RunBase How to enable the caching mechanism (pack/unpack)

Posted on In Views:
RunBase How to enable the caching mechanism (pack/unpack)?

How to Enable Caching (pack / unpack) in RunBase

This article also applies to Jobs implemented using the RunBaseBatch framework.

Business Background

In D365 Finance & Operations, RunBase is commonly used to implement parameterized business operations or batch Jobs. To ensure a good user experience and functional completeness, caching (pack / unpack) must be enabled in the following scenarios:

  1. When the Records to include control is required, allowing users to enter filter criteria for business tables (i.e., enabling Query);
  2. When the Job needs to run in a new session (RunInNewSession);
  3. When the Job must support Run in Batch execution.

From an implementation perspective, caching is essentially the serialization and deserialization of RunBase member variables. These member variables typically correspond to the parameters exposed to users in the Dialog.

This article demonstrates the simplest and standard implementation approach to correctly enable caching in a RunBase Job, while avoiding common implementation pitfalls.

Key Implementation

Step 1: Use macros to manage member variables

1
2
3
4
5
6
7
8
9
10
protected TransDate gTransDate; // Member variable

#DEFINE.CurrentVersion(1)
// #CurrentVersion represents the cache version number, defined as 1 in this example

#LOCALMACRO.CurrentList
// #CurrentList is used to centrally manage member variables that need to be cached
// Note: container-type variables must not be included here
    gTransDate
#ENDMACRO

Notes:

  • Using macros significantly improves maintainability
  • When parameters change, only #CurrentList needs to be updated
  • container-type variables must be handled separately and cannot be placed directly in the macro list

Step 2: Override the pack() method

1
2
3
4
public container pack()
{
    return [#CurrentVersion, #CurrentList];
}

Implementation details:

  • The return value must be a container
  • It is recommended to always store the version number first to support future extensions

Step 3: Override the unpack() method

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public boolean unpack(container _packedClass)
{
    Version version = RunBase::getVersion(_packedClass);

    switch (version)
    {
        case #CurrentVersion:
            [version, #CurrentList] = _packedClass;
            break;

        default:
            return false;
    }

    return true;
}

Notes:

  • RunBase::getVersion() is used to safely parse the cache structure
  • This is a key mechanism for supporting Job upgrades and backward compatibility

Special Case: Caching with QueryRun

When a Job enables the Records to include control, a QueryRun member variable is typically introduced.
Since QueryRun cannot be stored directly using macros, it must be handled separately.

Step 1: Declare member variables

1
2
3
4
5
6
7
8
protected TransDate gTransDate;
QueryRun queryRun;

#DEFINE.CurrentVersion(1)

#LOCALMACRO.CurrentList
    gTransDate
#ENDMACRO

Step 2: Override the pack() method

1
2
3
4
public container pack()
{
    return [#CurrentVersion, #CurrentList, queryRun.pack()];
}

Key points:

  • QueryRun must be packed separately using pack()
  • The order must be consistent with the unpack() method

Step 3: Override the unpack() method

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public boolean unpack(container _packedClass)
{
    Version version = RunBase::getVersion(_packedClass);
    container conQuery;

    switch (version)
    {
        case #CurrentVersion:
            [version, #CurrentList, conQuery] = _packedClass;
            Query query = new Query(conQuery);
            queryRun = new QueryRun(query);
            break;

        default:
            return false;
    }

    return true;
}

Notes:

  • During unpack, both Query and QueryRun must be reconstructed
  • Existing object instances must not be reused

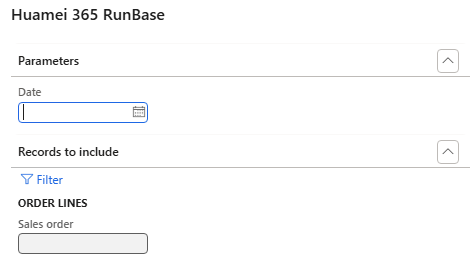

Result Validation

  1. Open the Job;

  1. Enter parameter values and click OK;

  2. After successful execution, reopen the Job. The parameter values should default to the values entered during the previous run;

These results indicate that:

  • pack / unpack is working correctly
  • parameters are correctly restored in new session and Batch scenarios

Summary

  1. RunBase does not automatically enable caching; pack / unpack must be explicitly implemented by the developer;
  2. Objects that need to be cached are typically member variables exposed in the Dialog;
  3. Using macros to manage cached fields is strongly recommended to improve maintainability;
  4. QueryRun is a special case and must be packed and unpacked separately;
  5. If a Job supports RunInNewSession / RunInBatch / Records to include, caching is mandatory rather than optional.
